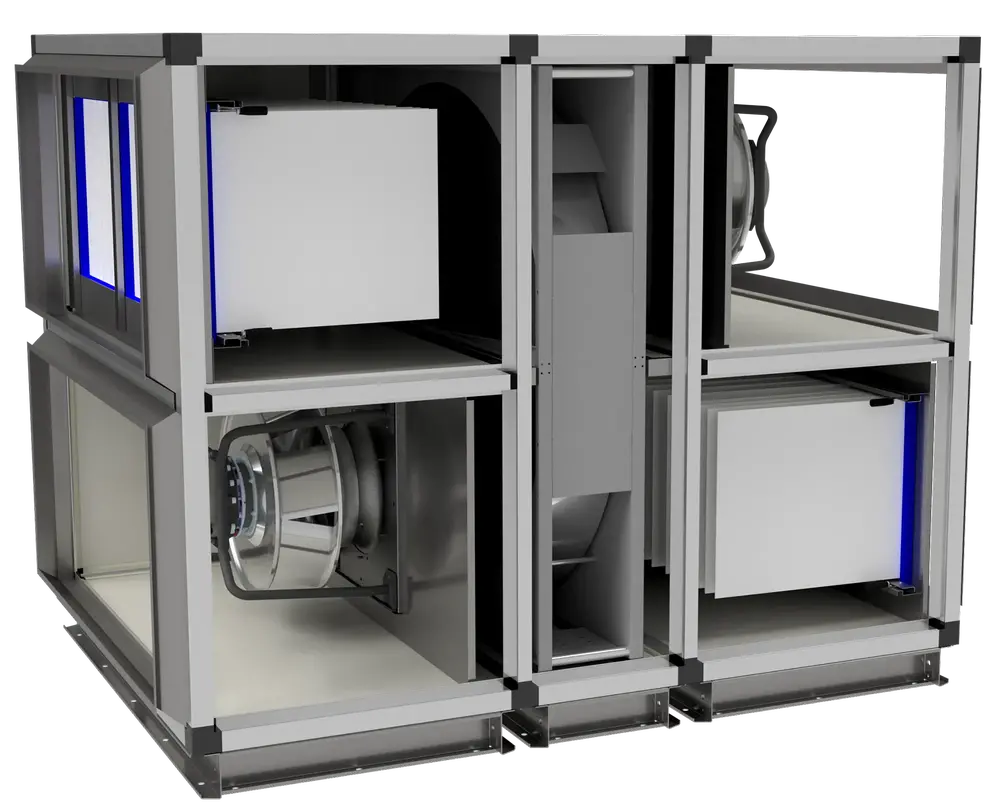

Rotary heat exchanger

GreenMaster-@ uses a rotary heat exchanger, which provides very high efficiency and has the advantage of smaller dimensions and lower cost compared to GreenMaster-XXL.

However, there is an important factor to consider when using GreenMaster-@. Since the rotor can transfer odors through its brush seal, it's essential that the premises to be ventilated through the same unit have relatively similar activities. If there is a significant difference in odors or pollutants between the premises, they can be transferred through the rotor.

GreenMaster-@ comes in 13 standard sizes and can be customized to customer-specific requirements for larger sizes and configurations. The unit can be used both indoors and outdoors and can be supplied with or without control equipment.

A dry efficiency of up to 86% according to the standard SS-EN308:1997 is possible for this product. This means that a high proportion of the energy supplied to the fan is converted into airflow without adding moisture to the air.

High-performance fans with EC/PM (Permanent Magnet) motors are a crucial part of the GreenMaster system. EC motors are known for their high efficiency and energy savings. EC/PM motors are even more efficient but can be more expensive. The choice of motor depends on the customer's needs and budget.

There is also the possibility to choose different corrugation heights in the rotary heat exchanger to optimize SFP (Specific Fan Power) against efficiency. SFP is a measure of the fan's efficiency and is defined as the total energy consumption to move air through a unit of airflow. A lower SFP indicates higher efficiency and lower energy costs. By selecting the right corrugation height, you can optimize SFP and efficiency to achieve the best results for a specific application.

GreenMaster units are generally delivered in sections and are divided into blocks for easier transport. This makes installation easier and faster, especially in tight spaces where it can be challenging to maneuver with large units.

Flow diagram

Zoom image

Choosing size and type

The green field below represents the recommended airflow range for optimal energy efficiency, while the blue field represents a higher airflow level that can be selected for higher performance if needed. The yellow area is intended for applications that require high airflow and where the air resistance is higher, such as when using an external heat exchanger or similar.

It's important to note that the end of the green area is approximately 1.5 m/s above the built-in battery, while the end of the blue area is 2.0 m/s, and the end of the yellow area is 4.0 m/s. These speeds are relevant for the selection of GreenMaster size and help optimize energy efficiency.

It's also worth mentioning that GreenMaster-@ and GreenMaster-MiniMax-@ have the same width and height, but the fan/filter section is more compact in MiniMax-@. This makes MiniMax-@ advantageous in applications where there is limited space or where a more compact unit is desired.

Download the GreenMaster AHU Selection Software for a more detailed calculation of the unit to get precise information.

GreenMaster AHU Selection Software
Zoom image

Dimensions, GreenMaster-@

Zoom image

We have designed the GreenMaster-@ to have the perfect size for all internal components and provide enough space for easy servicing.

GreenMaster-@


1

2

3

4

5

6

7

8

9

10

11

12

13

B

710

910

1010

1410

1710

2010

2210

2430

2710

3130

3430

3730

4130

H

916

1136

1396

1616

1766

2160

2360

2560

2760

3260

3610

3610

4666

L

1200

1700

1900

2100

2300

2600

2600

3000

3000

3500

3500

3500

3900

L1

-

600

700

800

900

1000

1000

1200

1200

1400

1400

1400

1600

L2

-

500

500

500

500

600

600

600

600

700

700

700

700

L3

-

600

700

800

900

1000

1000

1200

1200

1400

1400

1400

1600

aB

500

750

800

1200

1500

1800

1900

2000

2000

2600

2900

3200

3600

aH

300

400

500

600

700

900

900

1000

1200

1400

1600

1600

2000

Data for batteries and silencers, among other things, can be found in the GreenMaster Application. There are also many other options and accessories available, such as "Fire Operation", weight, electrical data, SFP, efficiency/effectiveness, and much more.

Dimensions, GreenMaster-@-MiniMax

Zoom image

GreenMaster-@-MiniMax has the same width and height as the -@ version but is shorter in length due to its compact filter/fan solution.

GreenMaster-@-MiniMax


3

4

5

6

B

1010

1410

1710

2010

H

1396

1616

1766

2160

L

1570

1570

1570

1870

L1

535

535

535

635

L2

500

500

500

600

L3

535

535

535

635

aB

800

1200

1500

1800

aH

500

600

700

900

UPB

800

1200

1500

1800

UPL

400

400

400

500

Data for batteries and silencers, among other things, can be found in the GreenMaster Application. There are also many other options and accessories available, such as "Fire Operation", weight, electrical data, SFP, efficiency/effectiveness, and much more.
